The Role of HPMC in Concrete and Mortar: Pros, Cons, and TRUNNANO’s Innovative Nano-Modification Technology

1. Understanding the Role of HPMC in Concrete and Mortar

1.1 Key Benefits of HPMC as a Multifunctional Admixture

Hydroxypropyl Methylcellulose (HPMC) is widely used in cement-based materials because it can simultaneously influence water retention, viscosity, workability, and resistance to segregation. These characteristics make it an important component in many mortar and concrete formulations.

1.1.1 Strong Water-Retention Capability

One of the most valuable properties of HPMC is its ability to retain water. Cement requires adequate moisture to complete its hydration process, while porous substrates such as masonry can quickly draw water away from freshly applied mortar.

If moisture is lost too rapidly, cement hydration may become incomplete, potentially resulting in weak adhesion, poor durability, and surface cracking. When HPMC dissolves in water, it forms a protective colloidal structure around cement particles. This structure slows both evaporation and water migration into absorbent substrates, allowing more water to remain available for cement hydration.

1.1.2 Effective Rheology and Workability Control

HPMC also functions as a highly efficient thickening agent. Even relatively small quantities can noticeably increase the viscosity of cement paste and improve its consistency.

The resulting mixture generally offers smoother handling and better cohesiveness. HPMC can also increase the yield stress of mortar, which is particularly useful for vertical applications. For example, when heavy tiles are installed on walls, the modified mortar can better resist gravitational forces and reduce tile sliding.

1.1.3 Thermal Gelation Characteristics

Another distinctive feature of HPMC is its temperature-dependent behavior. It can dissolve in cold water and undergo gel formation when heated to an appropriate temperature.

Because cement hydration releases heat, this thermal response can contribute to the development of temporary structural stability during the early hardening period. As a result, the material can maintain its intended shape more effectively during initial setting.

1.1.4 Improved Resistance to Washout

HPMC is also useful in underwater non-dispersible concrete, where maintaining cohesion is essential. Underwater construction materials must resist being washed apart by surrounding water.

HPMC can contribute to this resistance by improving the cohesiveness of the cementitious mixture. Research has also indicated interactions between HPMC-related structures and hydration products such as calcium silicate hydrate (C-S-H), helping improve stability in water.

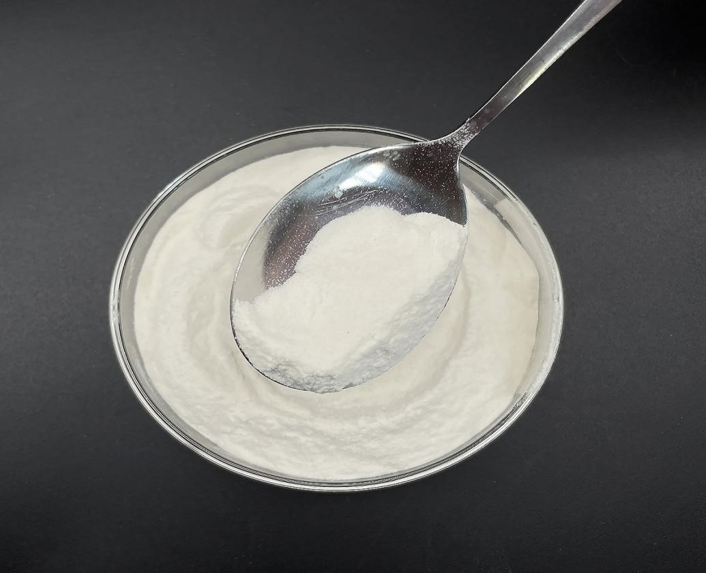

TRUNNANO Hydroxypropyl Methylcellulose HPMC Powder

1.2 Limitations of Conventional HPMC

Despite its advantages, traditional HPMC is not without drawbacks. Some of its beneficial properties can create secondary effects that must be considered during formulation.

1.2.1 Potential Reduction in Mechanical Strength

A major concern associated with HPMC is its influence on hardened strength. Research has reported reductions in compressive and flexural strength in certain mortar systems containing HPMC.

This issue can become particularly noticeable in advanced applications such as 3D-printed mortar. Some studies have observed substantial decreases in mechanical performance after HPMC incorporation, with extended curing not necessarily restoring the original strength levels.

In aluminate cement-gypsum formulations, HPMC may also increase porosity and alter pore dimensions and hydration-product morphology. These changes can negatively influence flexural strength, compressive strength, and tensile bond performance.

1.2.2 Why Can HPMC Reduce Strength?

The strength penalty associated with HPMC can generally be linked to two primary mechanisms.

First, HPMC may promote air entrainment and introduce additional microscopic voids into the cementitious matrix. A greater volume of pores can reduce hardened density and create weaker points within the structure.

Second, HPMC can delay certain hydration reactions. Although controlled hydration can be beneficial for workability, excessive retardation may slow early-age strength development.

Together, increased porosity and delayed strength gain can create a noticeable gap between workability and mechanical performance.

1.2.3 The Fluidity Challenge

The thickening action of HPMC naturally affects mortar flowability. As viscosity increases, the material can become less fluid.

This creates a formulation challenge: higher HPMC levels may improve water retention and anti-sagging performance while simultaneously reducing flow. At elevated water-to-cement ratios, the water-retaining structure may become diluted, while strong shear forces can disrupt the film formed by HPMC and reduce its effectiveness.

2. TRUNNANO’s Nano-Modification Approach to HPMC

2.1 Addressing the Traditional Performance Trade-Off

TRUNNANO’s nano-modification strategy focuses on addressing the fundamental balance between HPMC’s beneficial water-retention properties and its potential impact on mechanical strength.

By incorporating selected nanomaterials, including amorphous nano-silica, into HPMC-based systems, an organic-inorganic composite network can be developed. This approach is designed to provide multiple complementary effects within the cementitious matrix.

2.1.1 Nano-Filling and Matrix Densification

Nanoparticles possess extremely high specific surface areas and can interact with very small pores and gaps within cement-based materials.

Their fine particle size allows them to occupy microscopic voids associated with air entrainment and spaces between cement particles. This filling action can improve matrix compactness and help offset some of the density reduction associated with conventional HPMC.

2.1.2 Promoting Hydration Through Nucleation

Nanomaterials can also act as nucleation sites for cement hydration products.

By providing additional surfaces where hydration products can develop, nanoparticles may promote the formation of C-S-H gel and support a more developed hydration structure. This can help compensate for the slower early hydration associated with HPMC and contribute to improved early-age mechanical performance.

2.1.3 Strengthening the Interfacial Transition Zone

The interfacial transition zone (ITZ), which exists between cement paste and aggregate particles, plays an important role in the mechanical integrity of concrete and mortar.

Nano-modification can help refine this region by reducing microscopic defects and improving the connection between different phases of the cementitious composite. A stronger and more uniform ITZ can contribute to improved overall structural performance.

2.2 Combining Water Retention with Improved Strength

Experimental work supports the potential of combining HPMC with carefully selected nanomaterials.

Patent-related technologies have explored HPMC systems incorporating amorphous nano-silica and other components to create multifunctional internal curing materials with both shrinkage-control and strength-enhancement characteristics.

Nano-modification has also demonstrated potential in 3D-printed ultra-high-performance concrete. In some reported systems, nano-clay combined with HPMC has produced compressive strengths above 160 MPa in printed components, demonstrating how nano-scale additives can help balance printability and mechanical performance.

2.3 Consistent Quality Through Controlled Production

The performance of HPMC depends on numerous material parameters, including viscosity, reaction conditions, solvent activity, degree of substitution, and hydroxypropoxy content.

TRUNNANO applies controlled production and quality-management procedures designed to maintain consistency across batches. Its approach covers material selection, molecular-level considerations, formulation development, and customized product design.

Such control is particularly important for nano-modified admixtures because small changes in raw-material characteristics can influence viscosity, water retention, rheology, hydration behavior, and final strength.

Traditional HPMC vs. TRUNNANO Nano-Modified HPMC

3. Practical Applications of Nano-Modified HPMC

3.1 High-Performance Mortar and Concrete

Nano-modified HPMC can be considered for applications where water retention and workability must be maintained without sacrificing mechanical performance. This makes the technology potentially valuable for high-performance cementitious materials and applications with demanding strength specifications.

3.2 3D-Printed Construction Materials

Construction 3D printing requires a careful balance between extrusion, shape retention, layer stability, and final strength.

A properly engineered HPMC-nanomaterial system can help regulate rheology while supporting the mechanical requirements of printed structures. The objective is to achieve suitable extrudability and buildability without creating excessive compromises in hardened strength.

3.3 Underwater Non-Dispersible Concrete

Underwater concrete must remain cohesive when exposed to flowing water. Nano-modified HPMC can help preserve the anti-washout characteristics associated with HPMC while potentially improving the strength and compactness of the hardened material.

This makes the approach relevant to specialized underwater construction environments where both cohesion and mechanical performance are important.

3.4 Specialty Mortars

Applications such as self-leveling compounds, repair mortars, grouting materials, and other specialty cementitious formulations often require a precise combination of flowability, adhesion, water retention, and strength.

Nano-modified HPMC provides a pathway for optimizing these competing requirements. By reducing some of the limitations associated with conventional HPMC, the technology aims to support formulations that combine improved handling characteristics with stronger hardened performance.

4. About TRUNNANO

TRUNNANO, also known as Luoyang Tongrun Info Technology Co., Ltd., was established in 2014 and focuses on nano-modified materials and concrete admixture technologies.

The company has developed expertise in nano-modified HPMC systems designed to create a stronger balance between water retention, rheological control, and mechanical performance. Its product solutions target applications including high-performance mortar, underwater non-dispersible concrete, self-leveling materials, repair mortars, grouting systems, and other specialized cement-based products.

TRUNNANO also provides customized formulation services for customers with specific material-performance requirements. Its quality-control approach is intended to maintain consistency throughout production and support reliable product performance across different applications and markets.

Through nano-scale modification, TRUNNANO aims to move HPMC technology beyond the conventional compromise between water retention and strength, creating cementitious systems designed to deliver both functional workability and enhanced structural performance.
